Aerpro AMMB24 Carplay Android Auto replacement system to suit Mitsubishi Lancer (07-13) No SWC

SKU:
AMMB24
No reviews yet Write a Review
$1,099.99
Free Shipping
Afterpay
4 interest-free payments of $275.00 AUD fortnightly More info
PayPal Logo
Secure shopping made faster - shop without retyping payment details

Click & Collect available at checkout (Strathfield Store Only)

Description

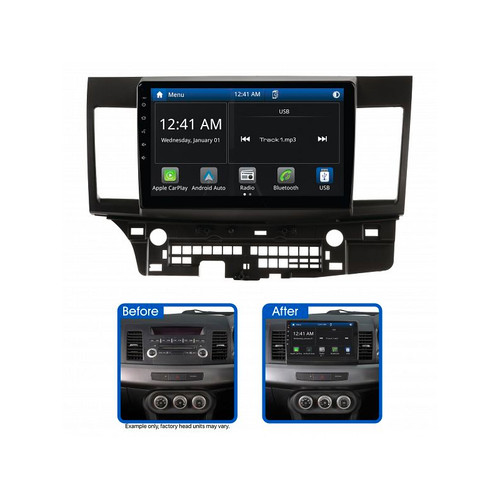

Aerpro AMMB24 Carplay Android Auto replacement system to suit Mitsubishi Lancer (07-13) No SWC

The Aerpro AMMB24 10" Multimedia Receiver with Wireless Apple CarPlay and Android Auto is an ideal fit for Mitsubishi Lancer (2007-2013) cars without steering wheel controls. With a generous 10" capacitive touchscreen display, this Multimedia Receiver enables wireless or wired use of Apple CarPlay and Android Auto, as well as built-in Bluetooth for hands-free phone calls and wireless audio streaming. It also includes a rear USB input and AM/FM radio tuner. The audio quality is excellent with a maximum output of 40Wx4, 8 band graphic EQ, and time alignment capabilities. Additionally, amplifiers can be added to the system via the 4V/5CH RCA preouts. The Aerpro AMMB24 comes as a complete Head Unit Upgrade Kit, including all the necessary parts for a hassle-free installation.

For even more convenience, you can add the optional Aerpro AMHXD3 On-Road/Off-Road Navigation Module (sold separately) to enjoy seamless on-road and off-road navigation through the head unit display. It is important to note that Head Unit Upgrade Kits may vary depending on the vehicle model, so it's recommended to use the Aerpro What Fits Your Car Guide to find the correct parts. Also, the Aerpro RFASWC Universal Steering Wheel Control can be manually programmed into this head unit (sold separately). Finally, it's crucial to connect the park brake wire to the park brake for Apple CarPlay and Android Auto to function correctly. This head unit kit includes the AM10X Multimedia Receiver, Black Facia Kit, and Harness.

AMMB24 HEAD UNIT UPGRADE KIT SPECIFICATIONS:

Kit Inclusions:
AM10X Multimedia Receiver
Black Facia Kit
Harness
Vehicle Feature Retention:
Steering Wheel Controls: N/A
Factory Reverse Camera: N/A
AUX Input: No
USB Input: N/A
Parking Tones: N/A
Factory Amplifier: N/A
Vehicle Menu: N/A
Other: N/A
AM10X MULTIMEDIA RECEIVER SPECIFICATIONS:

LCD Display:
Size: 10"
Resolution: 1024x600
Touch Screen: Capacitive (G+G)
System Specifications:
OS System / CPU: Linux 3.4.5 / SPHE8368U
RAM / Flash Memory: 128MB / 256MB
DIN Size: 2 DIN Short Body
Power Output
Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
MAX Power (4 Ohm): 4CH x 40W
Media Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4
Device Ports
USB (Rear) Playback Formats: CPAA & Media
USB (Rear) Power - Voltage/Amps: 5V/1.5A
USB MAX Capability: FAT32_32GB
Aux Inputs / Outputs:
Rear A/V Input (RCA Type - 3pcs): Yes
Composite Video Outputs: Yes
Reverse Camera Input: Yes (720P AHD Compatible)
Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
Bluetooth:
Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
Bluetooth Version: V4.2+EDR
Microphone: Built-in & External Microphone
ID3 Tag/Information (Artist, Album, Song): Yes
HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
Tuner:
AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
RDS: Yes
FM Antenna Connector Impedance: 50 Ohm
FM Tuner Connector: Motorola
RCA Preamp Outputs:
RCA Preamp Output: 2-Pair (Front / Rear)
Subwoofer RCA Output: Yes
Subwoofer Level Control: Yes
Preamp Voltage (1.2,2,4,5,6): 4V p-p
Tone Control:
8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
Loudness: Yes
LPF - Frequencies (Sub): Yes
8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
Other Features:
Steering Wheel Control: Yes, with Aerpro SWC Adaptor
OSD Language: English
LED Colour (Buttons / Keys): White
Accessories:
Power Harness: Yes with ISO/3.5mm jack
AV-In Cable (RCA with Audio L/R, Video In): Yes
Reverse Camera Input (with 12V power supply to the camera): Yes
4.1CH Audio Out Cable: Yes
External Microphone: Included
IMPORTANT INFORMATION:

Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
Suits Mitsubishi Lancer (2007-2013) vehicles without steering wheel controls.
Aerpro RFASWC Universal Steering Wheel Control can be manually programmed into this head unit (sold separately).
This head unit requires the park brake wire to be connected to the park brake for Apple CarPlay and Android Auto to function.
Mitsubishi Lancer 2007-2013 CJ
Features
To suit Mitsubishi Lancer (2007-2013) vehicles without steering wheel controls
Includes all the parts required to complete the installation
Apple CarPlay & Android Auto (wireless / wired)
Hema Maps Ready, experience seamless on-road and off-road navigation through the head unit display (optional AMHXD3 required, sold separately)
Large 10" capacitive touchscreen display
Bluetooth with external microphone included (A2DP, AVRCP, HFP, PBAP)
AM / FM Tuner with RDS & presets (18FM/12AM)
Rear USB input (1.5A max charging)
Reverse camera input (AHD 720P compatible) & rear A/V input
40Wx4 Max with 8 band graphic EQ and time alignment capabilities
4V/5CH RCA Preout and subwoofer level control

Extra Information

Brand:
Aerpro
