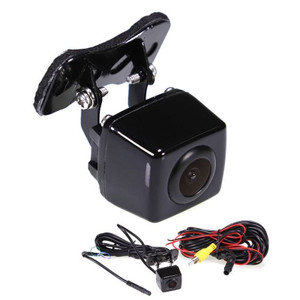

G30CL: BUTTERFLY MOUNT CAMERA WITH LOOP SYSTEM
Description
Gator G30CL, ideal for anyone looking for a high quality camera, is a super compact one that mounts virtually anywhere on the front or rear of the vehicle. Comes with optional built-in parking grid-lines that helps guide you when reverse parking, G30CL has a wide 105-degree anti-blind-spot viewing angle. It's clad in a sturdy aluminium case and rated IP67 for water and debris protection. It also sports a 4 Pin Micro Din connector, enabling a clean and simple installation. It has three wire loops on the wiring and during the installation, cutting the specific loop can effect adjustments:
BLUE - default setting NTSC, cut the loop for PAL;
GREEN - default setting NO parking grid-lines, cut the loop for parking grid-lines;
WHITE - default setting rear view image, cut the loop for reverse image.
G30CL is PAL/NTSC switchable and comes with a standard RCA cable, making it compatible to any monitor or in- dash AV headunit with RCA input. It's supplied with a 1.5-metre power wire and a 6-metre video RCA.
Specification
RESOLUTION: 480TV LINES
MOUNT TYPE: SURFACE MOUNT BUTTERFLY
REVERSE OR REAR VIEW: SWITCHABLE REVERSE/REAR VIEW
LENS ANGLE: 105 DEGREE
IMAGE SENSOR (CMOS or CCD): CMOS
PARKING GRID-LINES: SWITCHABLE ON/OFF
PAL or NTSC: SWITCHABLE PAL & NTSC
IP RATING: IP67
VOLTAGE: 12V
MINIMUM ILLUMINATION: 0.2LUX
NUMBER OF LEDs: N/A
LED TYPE: N/A
PLUG TYPE CAMERA END: 4 PIN MICRO DIN PLUG
PLUG TYPE MONITOR END: RCA
LENGTH OF VIDEO CABLE: 6M
REVERSE TRIGGER ON VIDEO CABLE: YES
DIMENSIONS (CAMERA ONLY): 15mm(H) x 15mm(W) x 21mm(L)
DIMENSIONS (CAMERA & BRACKET): 25mm(H) x 38mm(W) x 30mm(L)
WIRED OR WIRELESS: WIRED
OTHER FEATURES: LOOP SYSTEM FOR SETTING ADJUSTMENTS
Features
Surface mount design for simple installation on the front or rear of the vehicle
Can be used as a front view, rear view or reverse camera thanks to the loop feature
Equipped with optional parking grid-lines that help you reverse the vehicle with ease even in tight parking spots
105 degree super wide angle lens for reduced rear view blind-spots
Aluminium case and rated IP67 that guarantee the camera will withstand impact of water and debris normally hounding the vehicle's exterior
Camera is PAL/NTSC switchable, making it compatible with all display monitors and aftermarket AV headunits with RCA input
Low lux image sensor for use in low light environments
Includes 1.5-metre power wire and 6-metre RCA lead
Loop system for adjustable settings during installation
