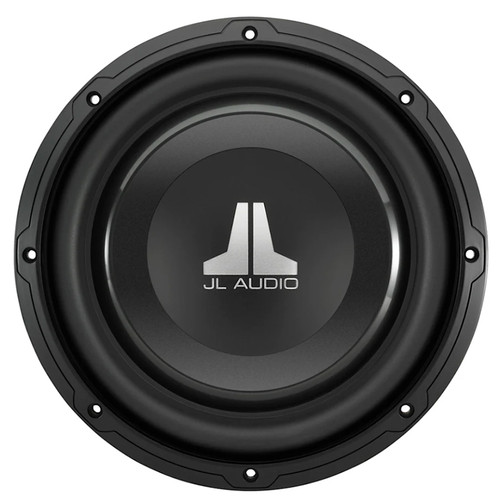

JL Audio® 10W1v3-2 10" Car Subwoofer – 2Ω, 300W RMS
The JL Audio 10W1v3-2 delivers tight, articulate bass in compact enclosures while maintaining excellent power handling and durability. Designed for small- to medium-sized systems, this 10-inch subwoofer is built with JL Audio’s advanced technologies to deliver clean, controlled performance at moderate amplifier power levels. With a 2Ω impedance and 300W RMS handling, it’s the perfect solution for space-efficient installations that don’t compromise on sound quality.
Key Features:
-
2Ω Impedance – Pairs easily with a wide range of amplifiers for efficient power delivery.
-
300W RMS Power Handling – Produces deep, controlled bass in daily-use systems.
-
Dynamic Motor Analysis (DMA) Optimised – Ensures linear movement and low distortion at all levels.
-
Elevated Frame Cooling™ – Directs airflow across the voice coil for improved thermal handling.
-
Injection-Moulded Polypropylene Cone – Durable, rigid, and moisture-resistant for long-lasting performance.
-
Floating Cone Attach Method (FCAM™) – Provides accurate voice coil alignment and enhanced excursion control.
-
Vented Reinforcement Collar (VRC™) – Adds stability and directs cooling airflow over the voice coil windings.
-
Compact Mounting Depth – Only 117 mm (4.6") required, making it ideal for tight installations.
-
Customisable Trim Ring – Paintable for a personalised look; optional steel mesh grille available.
-
Sealed & Ported Enclosure Compatibility – Works in enclosures as small as 0.55 cu. ft. sealed or 0.9 cu. ft. ported.
-
1-Year Warranty – Backed by JL Audio quality and reliability.
Specifications (10W1v3-2):
-
Size: 10"
-
Power Handling (RMS): 300W
-
Recommended Amp Range: 75–300W
-
Nominal Impedance: 2Ω
-
Sensitivity: 83.9 dB (1W/1m)
-
Mounting Depth: 117 mm (4.6")
-
Mounting Hole Diameter: 230 mm (9.0625")
-
Driver Displacement: 0.037 cu. ft. (1.05 L)
-
Sealed Enclosure Volume (net): 0.55 cu. ft. (15.57 L)
-
Ported Enclosure Volume (net): 0.9 cu. ft. (25.5 L)
-
-3dB Cutoff (Sealed): 42.3 Hz
-
Tuning Frequency (Ported): 32.17 Hz
Why Choose the 10W1v3-2?
The JL Audio 10W1v3-2 is a proven performer for enthusiasts who want powerful, precise bass without sacrificing cabin or boot space. Its efficient 2Ω design, compact enclosure requirements, and advanced JL Audio engineering make it the ideal choice for clean, impactful low-end in almost any vehicle.
