Description

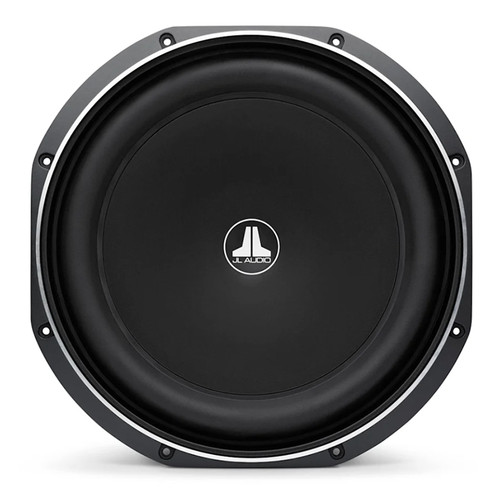

JL Audio® 12TW1-2 12" Thin-Line Car Subwoofer – 2Ω, 300W RMS
The JL Audio 12TW1-2 is engineered to deliver tight, powerful bass in vehicles where space is limited. Featuring JL Audio’s patented Thin-Line technology, this 12-inch subwoofer achieves outstanding low-frequency performance while fitting into ultra-compact enclosures. With a 2Ω impedance and 300W RMS power handling, it offers flexible amplifier pairing and serious output from a shallow-mount design.
Key Features:
-
2Ω Configuration – Optimised for amplifiers that perform best at lower impedance.
-
300W RMS Power Handling – Produces clean, deep bass without distortion.
-
Shallow Mounting Depth – Requires only 117 mm of clearance for installation.
-
Minimal Frontal Clearance – Just 0.87" (22 mm) with grille, perfect for tight builds.
-
Dynamic Motor Analysis (DMA) Optimised – Provides long, linear excursion for articulate bass.
-
Concentric Tube Suspension Technology – JL Audio’s patented design allows a large motor in a slim profile.
-
Injection-Moulded Polypropylene Cone – Durable, mineral-filled, and moisture-resistant.
-
Engineered Lead-Wire System – Designed for reliability under extreme excursion.
-
Sealed & Ported Enclosure Flexibility – Performs in compact sealed enclosures as small as 0.65 cu. ft. or ported enclosures of 1.125 cu. ft.
-
1-Year Warranty – Built with JL Audio’s commitment to long-lasting quality.
Specifications (12TW1-2):
-
Size: 12"
-
Power Handling (RMS): 300W
-
Recommended Amp Range: 75–300W
-
Nominal Impedance: 2Ω
-
Sensitivity: 85.07 dB (1W/1m)
-
Mounting Depth: 117 mm (4.62")
-
Frontal Clearance (with grille): 22 mm (0.87")
-
Mounting Hole Diameter: 281 mm (11.0625")
-
Driver Displacement: 0.072 cu. ft. (2.04 L)
-
Sealed Enclosure Volume (net): 18.41 L (0.65 cu. ft.)
-
Ported Enclosure Volume (net): 31.86 L (1.125 cu. ft.)
-
-3dB Cutoff (Sealed): 45.83 Hz
-
System Resonance (FC, Sealed): 55.99 Hz
Why Choose the 12TW1-2?
The JL Audio 12TW1-2 is the ultimate solution when you want maximum bass in minimal space. With its 2Ω voice coil and space-efficient Thin-Line design, it ensures you don’t have to compromise on performance, even in the tightest installations.
