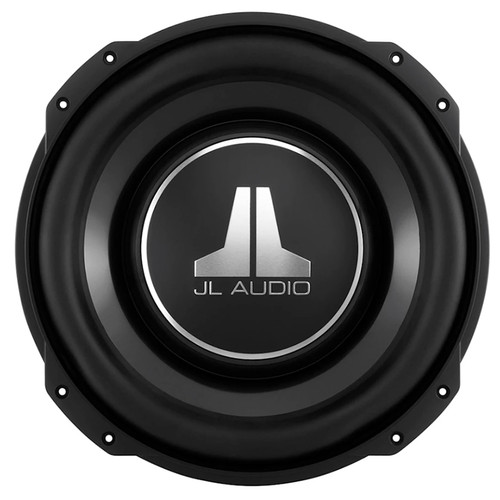

JL Audio® TW3 12″ Thin-Line Car Subwoofer – Dual 8 Ohm (12TW3-D8)
The JL Audio 12TW3-D8 brings legendary JL bass performance to tight-space applications without compromise. Engineered with thin-line technology, this 12-inch dual 8-ohm subwoofer delivers deep, articulate, and powerful bass from an impressively shallow design, requiring only 3.5 inches of mounting depth. Whether sealed or ported, the TW3 excels in compact enclosures, making it the perfect solution for vehicles with limited space.
Key Features
-
12″ Dual 8-Ohm Configuration – Flexible wiring options for system integration.
-
Thin-Line Frame Design – Mounts in spaces conventional subs cannot, with just 3.5″ depth required.
-
Powerful RMS Handling (400W) – Optimised for amplifiers delivering 200–400 watts of clean power.
-
DMA-Optimised Motor System – Reduces distortion and improves linear excursion for clean, impactful bass.
-
Concentric Tube Suspension Technology – Patented design enables a forward motor structure for long excursion in a compact frame.
-
Durable Polypropylene Cone – Injection-molded, mica-filled cone ensures strength, stability, and smooth bass response.
-
Cast-Alloy Frame with Tab-Ear Design – Increases rigidity while maximising cone area for bigger sound.
-
Minimal Enclosure Requirements – Works in compact sealed (1 cu ft) or ported (1.3 cu ft) enclosures.
-
Push-Terminal Connections – Secure and convenient wiring for reliable installs.
-
1-Year Warranty – Backed by JL Audio craftsmanship and reliability.
Specifications (12TW3-D8)
-
Size: 12″
-
Impedance: Dual 8 Ω
-
Continuous Power Handling (RMS): 400 W
-
Recommended Amplifier Power: 200–400 W
-
Sensitivity (1W/1m): 84.23 dB
-
Mounting Depth: 89 mm (3.5″)
-
Mounting Hole Diameter: 295 mm (11.625″)
-
Driver Displacement: 0.029 cu ft (0.82 L)
-
Sealed Enclosure Volume (Net): 28.3 L (1.0 cu ft)
-
Ported Enclosure Volume (Net): 36.8 L (1.3 cu ft)
-
Cone Material: Mineral-filled polypropylene
-
Frame: Cast-alloy with space-saving tab-ear design
Why Choose the JL Audio TW3 12″ Dual 8-Ohm?
For those who demand hard-hitting bass in tight spaces, the 12TW3-D8 is a powerhouse performer. Combining shallow mounting depth, compact enclosure requirements, and true JL Audio sound quality, this subwoofer is built for enthusiasts who refuse to compromise on low-frequency performance.
